The Conic Color TV Sports 406, also known as the TVG-406-6, is a classic first-generation home video game console introduced in 1977. Manufactured in Hong Kong and marketed under the Conic brand, it represents an important period in the development of affordable electronic entertainment, when dedicated Pong consoles were becoming increasingly popular in households around the world.
Built around the famous General Instrument AY-3-8500 integrated circuit, the system offers six built-in games: Tennis, Hockey, Squash, Handball, Shooting 1, and Shooting 2.
Unlike many earlier Pong consoles, the Conic 406 combines colour television graphics with support for a photoelectric light gun, allowing players to enjoy both traditional ball-and-paddle games and electronic shooting activities.
Its distinctive beige enclosure features a central speaker grille, a selection of physical switches, two brightly coloured control buttons, detachable paddle controllers, and an integrated storage compartment.
The console also belongs to a large family of closely related systems distributed internationally under different names, including Soundic, Sonico, Academy, Ajax, C.I.C., Sheen, and Trensi.
Today, the Conic Color TV Sports 406 is an important historical artefact illustrating the rapid development of first-generation gaming hardware before programmable cartridge-based consoles transformed the industry.
📘 Introduction
The Conic Color TV Sports 406 appeared in 1977, during the commercial expansion of dedicated television gaming systems.
At the time, most home video game consoles offered relatively simple electronic games based on the original Pong concept.
Manufacturers competed by introducing more games, improved graphics, different controller designs, and additional features.
The Conic 406 offered a relatively advanced combination of technologies for its period.
Main Features
- Six built-in electronic games
- Four Pong-style sports games
- Two shooting games
- General Instrument AY-3-8500 game chip
- Colour television graphics
- Photoelectric light-gun support
- Two detachable paddle controllers
- Adjustable ball speed
- Adjustable ball angles
- Adjustable paddle size
- Automatic and manual serve
- On-screen scoring
- Built-in speaker
- RF television connection
- Battery operation
- Optional external power supply
- Integrated controller storage compartment
The system belongs to the first generation of home video game consoles.
It does not use game cartridges or software stored on external media.
Instead, its gameplay is permanently implemented through dedicated electronic circuitry.
This makes it fundamentally different from the programmable systems that would become dominant during the following decade.
🏭 Conic: The Hong Kong Electronics Manufacturer
The Conic brand originated within Hong Kong’s rapidly developing consumer electronics industry.
During the 1970s, Hong Kong became one of the world’s important manufacturing centres for inexpensive electronic products.
The Conic Group grew into a major industrial organisation producing a wide range of consumer electronics.
The Origins of Conic
The group’s development was closely associated with entrepreneur Alex Au Yan-din.
His early business activities involved plastic manufacturing.
The company subsequently expanded into electronics production.
Conic Investment
Conic Investment was established in 1975 as a holding company for the expanding group.
By the late 1970s, the organisation was involved in manufacturing numerous consumer products.
Conic Products
Its wider business activities included:
- Radios
- Cassette recorders
- Televisions
- Electronic clocks
- Calculators
- Electronic games
- Video game consoles
- Electronic components
Accurate Electronics Industry
One of the important companies within the Conic Group was Accurate Electronics Industry Ltd.
Established in 1975, it manufactured products including calculators, electronic watches, and television games.
The Conic Gaming Range
Conic marketed numerous gaming systems during the late 1970s.
Some were dedicated Pong machines, while others used interchangeable electronic game cartridges.
Historical Importance
The Conic 406 is therefore connected with a substantial Hong Kong electronics manufacturer rather than being merely an anonymous Pong clone.
It illustrates how Asian electronics manufacturers contributed to making home video gaming accessible internationally.
🌏 Manufacturing & International Distribution
One of the most interesting characteristics of the Conic 406 is its international distribution history.
During the 1970s, many manufacturers supplied electronic devices to distributors who marketed them under local brand names.
Hong Kong Manufacturing
The Conic Color TV Sports 406 was manufactured in Hong Kong.
Its production reflected the growing capacity of Hong Kong’s electronics industry.
Related Branding
Closely related systems appeared under names including:
- Conic Color TV Sports 406
- Soundic Color TV Sports 406
- Sonico Color TV Sports 406-6
- Academy TVG-406-6
- Ajax TVG-406-6
- C.I.C. TVG-406-6
- Sheen TVG-406-6
- Trensi Color TV Sports 406
Different European Markets
Documented versions of the hardware family appeared in countries including:
- United Kingdom
- Germany
- Spain
- Other European markets
Related designs were also marketed outside Europe.
Rebranding & Shared Hardware
The different versions could use similar circuitry and comparable enclosure designs.
However, branding, labels, accessories, and minor electrical details could vary.
Why This Matters
Collectors frequently encounter apparently different Pong consoles that are closely related internally.
The Conic 406 is an excellent example of this practice.
A Global Technology
Although early video gaming originated primarily in the United States, manufacturers in Hong Kong and other parts of Asia played an essential role in spreading the technology internationally.
🖥️ The Distinctive Conic 406 Design

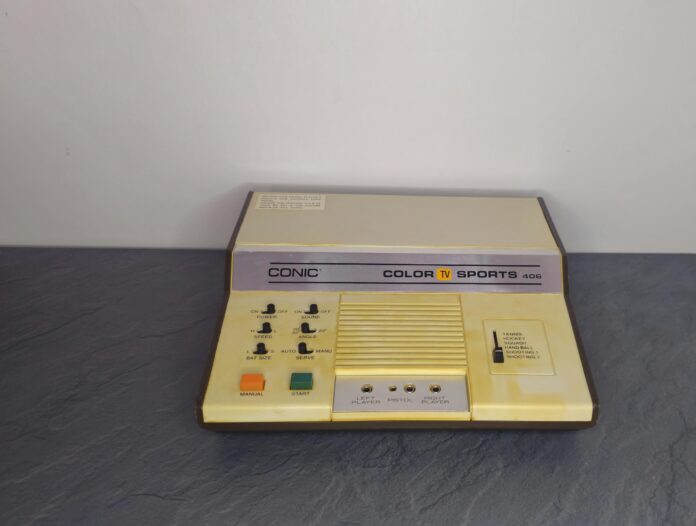

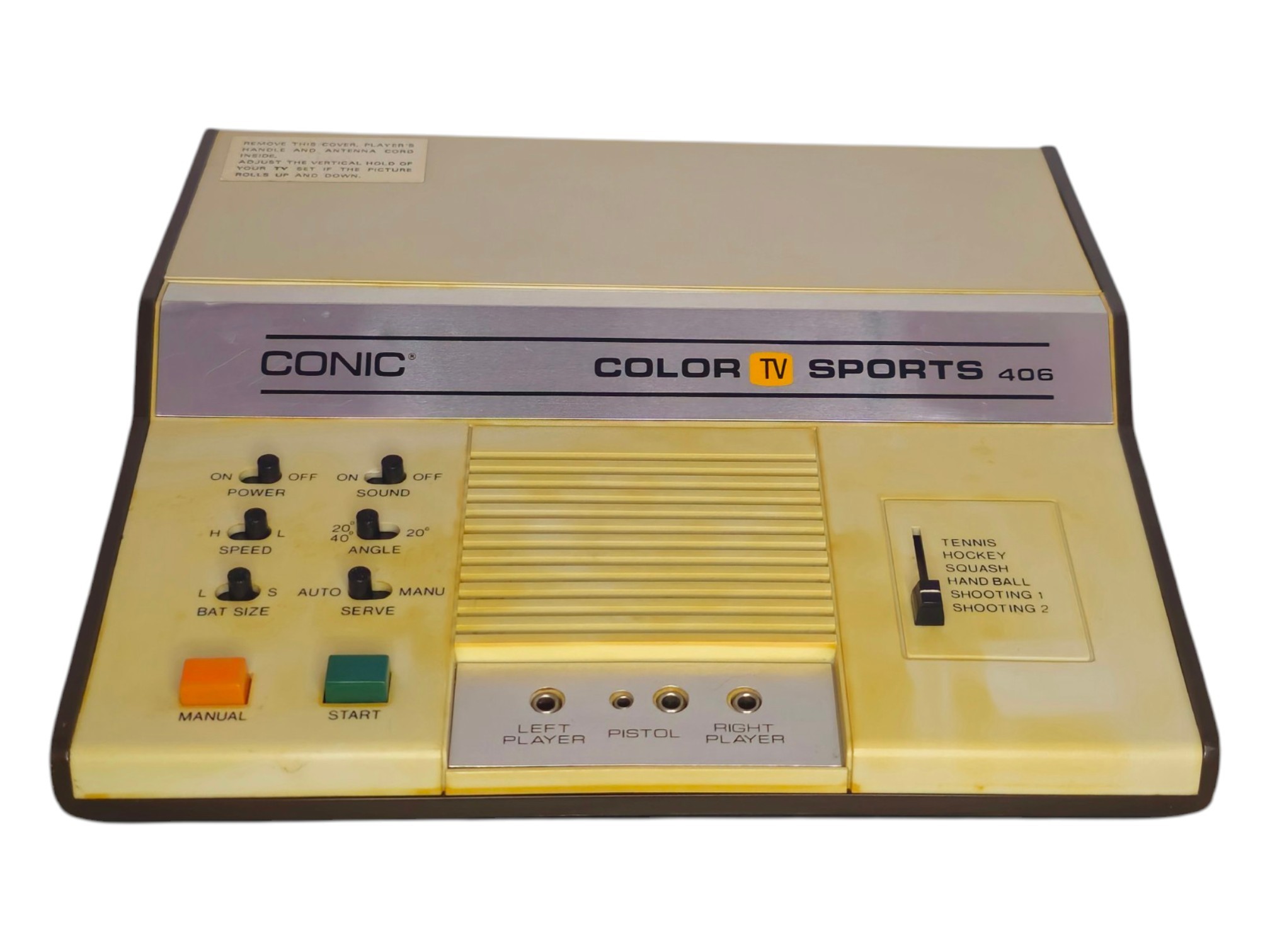

The Conic Color TV Sports 406 features a relatively large rectangular enclosure with a distinctive two-part upper housing.
The console is designed for placement near a domestic television.
Exterior Characteristics
- Beige or cream-coloured plastic enclosure
- Contrasting dark trim
- Conic branding
- Central speaker grille
- Left-side configuration controls
- Right-side game-selection switch
- Two coloured push buttons
- Front controller connections
- Rear storage compartment
- External power connection
- RF television cable
The Divided Upper Housing
The upper enclosure consists of two main sections.
The forward section contains the controls.
The rear section provides storage space for the controllers and RF cable.
The Speaker Grille
A large rectangular grille occupies the centre of the control panel.
It allows sound from the internal speaker to be heard.
Orange & Blue Buttons
Two brightly coloured buttons are positioned near the lower-left corner of the control panel.
They are marked:
- MANUAL
- START
The Game Selector
A vertical selector on the right side allows the user to choose between the six available games.
A Characteristic 1970s Design
The combination of mechanical switches, simple typography, cream plastic, and coloured buttons makes the Conic 406 an excellent example of late-1970s consumer electronics styling.
⚙️ Technical Specifications
The Conic Color TV Sports 406 uses a dedicated game-chip architecture.
Hardware Overview
- Brand: Conic
- Model: TVG-406-6
- Product name: Color TV Sports 406
- Manufacturer: Conic / Accurate Electronics Industry
- Manufacturing location: Hong Kong
- Release year: 1977
- Generation: First-generation home console
- System type: Dedicated Pong console
- Main game chip: General Instrument AY-3-8500
- Processor architecture: Dedicated electronic game logic
- Conventional programmable CPU: None
- Games: Six built-in
- Sports games: Four
- Shooting games: Two
- Graphics: Electronic 2D graphics
- Sports-game video: Colour
- Shooting-game video: Monochrome on documented hardware
- Scoring: On-screen
- Audio: Electronic sound effects
- Speaker: Internal
- Controllers: Two detachable paddle controllers
- Optional controller type: Photoelectric light gun
- Controller connections: Dedicated jack sockets
- Television output: Analogue RF / VHF
- Battery power: Six 1.5V C-size batteries
- External power: 9V DC on documented units
- Documented adapter polarity: Centre-positive
- Game cartridges: Not supported
- Built-in operating system: None
The actual power requirements and internal revision of an individual unit should be confirmed from its original markings and electronics.
🧠 The General Instrument AY-3-8500
At the heart of the Conic 406 is the General Instrument AY-3-8500, one of the most influential integrated circuits in early video gaming.
Introduced in 1976, the chip allowed manufacturers to create complete Pong-style gaming systems with relatively few additional components.
Pong on a Chip
The AY-3-8500 contains dedicated circuitry responsible for:
- Ball movement
- Paddle positions
- Collision detection
- Scoring
- Game selection
- Video generation
- Sound signals
- Shooting-game functions
No Conventional CPU
Unlike programmable consoles, the Conic 406 does not contain a general-purpose processor running games stored in ROM.
The AY-3-8500 implements game behaviour through dedicated electronic logic.
An Important Manufacturing Innovation
Before highly integrated game chips became common, electronic games could require many individual components.
The AY-3-8500 dramatically simplified the design.
Six Available Games
The chip supports multiple game variations.
The Conic 406 provides access to four ball-and-paddle games and two shooting modes.
A Widely Used Integrated Circuit
The AY-3-8500 appeared in numerous consoles sold under different brands.
This explains why many Pong systems of the period offer similar games and control options.
Historical Significance
The AY-3-8500 helped establish the affordable dedicated home console market during the late 1970s.
It is one of the defining semiconductor components of the Pong generation.
🎨 Colour Graphics in the Pong Era
One of the Conic 406’s most notable features is its colour video output.
Many earlier Pong consoles displayed their games exclusively in black and white.
The Conic 406 introduced colour presentation to its sports games.
Colour Sports Games
The four conventional sports modes can display coloured graphical elements.
These include:
- Playing field
- Paddles
- Boundaries
- Ball
- Scoring information
Additional Video Circuitry
The dedicated AY-3-8500 generates the underlying electronic game signals.
Additional circuitry enables their presentation as colour television graphics.
Not a Programmable Graphics Processor
The colour capability does not imply that the console contains a graphics processor comparable with later systems.
The graphics are still produced by fixed electronic logic.
Shooting Modes
Documented tests of Conic TVG-406-6 hardware show that its two shooting games can produce monochrome output.
This is an important distinction from the colour sports games.
The Importance of Colour
During the 1970s, colour television was becoming increasingly widespread.
Colour graphics became an attractive selling point for electronic games.
A Step Towards More Sophisticated Visuals
Although the Conic’s graphics are primitive by modern standards, they demonstrate the gradual evolution of television gaming beyond the original black-and-white Pong experience.
🎮 The Six Built-In Games
The Conic Color TV Sports 406 offers six games.
These are selected through the vertical control on the right side of the console.
Game Selection
- Tennis
- Hockey
- Squash
- Handball
- Shooting 1
- Shooting 2
The first four games use the paddle controllers.
The final two are designed for a compatible photoelectric pistol.
A Shared Electronic Foundation
The games are based on simple geometric objects and dedicated hardware rules.
No Additional Cartridges
All six game modes are permanently available in the original circuitry.
A Versatile Pong System
The inclusion of two shooting games distinguishes the Conic 406 from many four-game Pong consoles.
🎾 Tennis: Classic Two-Player Pong
Tennis is the most recognisable game on the system.
Two players control paddles positioned at opposite sides of the television screen.
Gameplay
A ball travels between the paddles.
Each player must move their paddle to return the ball.
Scoring
A point is awarded when an opponent fails to return the ball.
Controller Input
The paddle’s vertical position is controlled by turning a rotary knob.
Difficulty Settings
The player can adjust the ball speed and paddle size.
Historical Importance
Tennis represents the basic Pong formula that helped establish the home video game industry.
Its simple gameplay made it accessible to almost anyone.
🏒 Hockey: Electronic Sports Competition
Hockey offers a modified playing-field arrangement.
Gameplay
The game uses paddles, a moving ball, and scoring areas.
Different Field Layout
The arrangement differs from conventional Tennis, providing an alternative sports experience.
Shared Controls
Players use the same rotary paddle controllers.
A Common Pong Variation
Hockey was one of the standard games included in many early electronic television systems.
Historical Significance
It demonstrates how manufacturers created multiple games by modifying the behaviour and arrangement of simple electronic objects.
🏓 Squash: Wall-Based Paddle Gaming
Squash introduces gameplay involving a wall or modified court arrangement.
Gameplay
The player attempts to return a moving ball while responding to its rebound from a boundary.
A Different Challenge
The ball’s movement requires timing and accurate paddle positioning.
Adjustable Difficulty
The Speed, Angle, and Bat Size settings influence gameplay.
A Familiar Sports Theme
Squash was widely represented in first-generation television gaming because it could be implemented using relatively simple electronic rules.
Historical Importance
The game shows how fixed-purpose chips could offer different experiences without requiring software changes.
🏐 Handball: Another Pong Variation
Handball provides another game built around the same underlying electronic technology.
Gameplay
The game uses a modified court arrangement and ball behaviour.
Player Interaction
The rotary controllers allow players to move the on-screen paddles.
Game Adjustments
The physical switches can modify the difficulty.
The Importance of Variety
Although the four sports games share similar graphical elements, their different playing arrangements were important selling points during the 1970s.
A First-Generation Experience
Handball reflects the period when the number of available game variations was an important part of console marketing.
🎯 Shooting 1: Electronic Target Gaming
Shooting 1 is one of the Conic 406’s two light-gun modes.
The Basic Concept
The player aims a compatible photoelectric pistol towards the television screen.
The system uses the pistol’s light-sensitive electronics to register shooting input.
A Different Form of Interaction
Unlike the paddle games, shooting requires aiming directly at the picture.
Dedicated Hardware
The AY-3-8500 provides shooting-game functionality.
The Television’s Role
Traditional photoelectric shooting games depend on the behaviour of an appropriate CRT display.
Historical Importance
The mode illustrates how manufacturers were extending interactive television entertainment beyond the original Pong concept.
🔫 Shooting 2: A Second Shooting Challenge
Shooting 2 provides an alternative shooting-game arrangement.
Gameplay
Players attempt to register successful shots using the compatible light-gun accessory.
A Separate Mode
The game is selected independently from Shooting 1.
Hardware-Based Interaction
The shooting logic is generated through the dedicated game chip and supporting circuitry.
An Important Feature
The presence of two shooting modes provides greater variety than a conventional four-game Pong console.
Historical Importance
These games belong to the early development of light-gun entertainment, which later became an established category of console gaming.
🔫 The Photoelectric Light Gun
The Conic 406 was designed to support a photoelectric shooting accessory.
Documented original retail packages included a pistol-style controller.
Physical Characteristics
Known examples feature:
- Pistol-shaped enclosure
- Trigger
- Wired connection
- Light-sensitive detector
- Dedicated electrical connectors
A Distinctive Accessory
The pistol is visually different from the simple paddle controllers.
How It Works
Photoelectric gaming accessories detect light from the television screen.
The console interprets the detector’s response during the shooting sequence.
Why CRT Televisions Matter
Traditional CRT televisions create their pictures through a scanning electron beam.
Many early shooting systems depend on this technology.
Modern Display Limitations
A modern LCD or OLED television may display the game but fail to support its original shooting functionality.
Preservation Importance
An original compatible light gun is an important part of the console’s broader hardware ecosystem.
However, it should be recorded as an included collection item only when physically present.
🕹️ The Detachable Paddle Controllers
The Conic 406 uses two separate paddle controllers.
These provide control for the four sports games.
Controller Design
The original controller style features:
- Compact cylindrical housing
- Rotary control knob
- Wired connection
- Dedicated jack connector
- Direct paddle-position control
Analogue Movement
Rotating the knob changes an electrical value that influences paddle position.
Separate Controllers
Unlike some Pong systems, the controllers are not permanently built into the main console.
Practical Advantages
Detachable controllers can be stored separately and inspected or serviced individually.
A Historic Control Method
Rotary paddles were among the most common input devices used by early home video games.
An Authentic Gaming Experience
Using the original paddle controllers provides a different physical experience from modern digital gamepads.
It is an important part of understanding first-generation gaming.
🎛️ The Physical Control Panel
The Conic 406 includes numerous switches that directly modify game behaviour.
POWER ON/OFF
Controls electrical power to the console.
SOUND ON/OFF
Enables or disables electronic sound effects.
SPEED H/L
Selects high or low ball speed.
ANGLE 20–40 / 20
Changes the ball’s available rebound-angle behaviour.
BAT SIZE L/S
Selects a larger or smaller paddle.
SERVE AUTO/MANU
Selects automatic or manual serving.
MANUAL Button
Used to initiate a manual serve when the appropriate mode is selected.
START Button
Begins or resets gameplay.
Six-Position Game Selector
Selects the individual game.
An Interesting Historical Interface
The Conic uses physical switches for almost every gameplay setting.
This reflects the era before graphical user interfaces became common in home gaming.
🔊 The Internal Speaker
The Conic Color TV Sports 406 includes an internal loudspeaker.
The large grille in the centre of its control panel is a distinctive design feature.
Electronic Sound Effects
The AY-3-8500 provides simple sound signals.
These correspond to gameplay events such as:
- Ball collisions
- Paddle impacts
- Scoring
- Other game-related actions
No Digital Music
The system does not feature recorded soundtracks or programmable music synthesis.
The SOUND Switch
Players can turn the sound effects on or off.
A Familiar Pong Sound
Short electronic tones became one of the most recognisable characteristics of the first generation of video games.
Preservation
The internal speaker and related wiring are important parts of the original hardware.
📡 RF Video & Analogue Television Connection
The Conic 406 was developed for analogue televisions.
It uses an RF connection rather than a modern composite or HDMI output.
RF Technology
The console generates a television-compatible signal.
This is transmitted through an RF cable to an appropriate analogue television tuner.
VHF Operation
Documented units use a VHF television connection.
The Original Setup
A typical installation involves:
- Connecting the RF cable
- Selecting the appropriate television channel
- Supplying power
- Connecting the controllers
- Selecting a game
- Starting play
No HDMI
The original Conic 406 does not provide digital video output.
Modern Display Challenges
Many contemporary televisions do not support the analogue RF standards required by vintage Pong consoles.
Using a CRT Television
A compatible CRT television provides the most historically authentic display environment.
It is particularly important when demonstrating the light-gun functions.
🔋 Power Supply & Battery Operation
The Conic TVG-406-6 supports both battery operation and external power.
Battery Power
Documented hardware uses:
6 × 1.5V C-size batteries (LR14)
This produces a nominal 9V supply.
External Power
Documented examples use:
9V DC — centre-positive
An Important Safety Warning
The electrical specifications should be confirmed from the actual console before connecting an external adapter.
Why Polarity Matters
Vintage gaming systems can use similar-looking connectors with opposite electrical polarity.
Incorrect polarity can damage electronic components.
Battery Compartment
The battery compartment is accessible from the underside of the console.
Age-Related Problems
Old batteries can leak and corrode the metal contacts.
Preservation Recommendation
Batteries should be removed during long-term storage.
Electrical testing should begin only after inspecting the power connections and internal condition.
🧩 The Internal Electronics
The Conic 406 contains a relatively simple electronic architecture compared with later gaming consoles.
Main Circuit Board
The motherboard contains the dedicated game chip and supporting components.
Supporting Integrated Circuits
Documented examples contain additional logic chips used to implement supporting electrical functions.
The Game Chip
The AY-3-8500 is the central component responsible for generating the games.
Control Board
The physical switches are connected to the main circuitry through a separate control arrangement.
Speaker
The internal loudspeaker provides audio output.
RF Circuitry
The television-output hardware produces the signal required by the analogue tuner.
Manufacturing Revisions
Surviving examples can contain different component brands and board revisions.
The Importance of Inspection
An exact motherboard revision should be recorded from the physical circuit board rather than inferred from the model name alone.
🔄 Conic 406 vs. Conic TV Sports TG-621
The Conic TV Sports TG-621 is another first-generation gaming system introduced around 1977.
Both systems use related Pong-generation technology.
Conic TV Sports TG-621
- Four built-in games
- AY-3-8500 game chip
- Black-and-white graphics
- Two detachable paddle controllers
- No standard light-gun gameplay
- Compact dedicated-console design
Conic Color TV Sports 406
- Six built-in games
- AY-3-8500 game chip
- Colour sports graphics
- Two detachable paddle controllers
- Two shooting modes
- Light-gun support
- Integrated controller storage
The Main Difference
The Conic 406 provides more games and additional interactive capabilities.
Different Enclosures
The two machines also use different physical designs.
Historical Importance
The comparison demonstrates how Conic offered several gaming products built around similar integrated-circuit technology.
🔄 Conic 406 vs. Unimex Mark IX
The Conic 406 and Unimex Mark IX represent two different approaches to late-1970s home gaming.
Conic Color TV Sports 406
- Six permanently built-in games
- General Instrument AY-3-8500
- Colour Pong graphics
- Two shooting games
- Photoelectric pistol support
- No cartridge slot
Unimex Mark IX
- Interchangeable electronic game cartridges
- Game-generation hardware inside cartridges
- Several available cartridge types
- Different game-selection arrangements
- More modular architecture
The Fundamental Difference
The Conic 406 uses permanently installed game hardware.
The Unimex Mark IX can change game hardware through cartridges.
Two Important Technologies
Both approaches appeared during the transition towards expandable video game systems.
Museum Significance
Displaying the two systems together provides an excellent way to explain how manufacturers experimented with game variety before software-based cartridges became standard.
🔄 Conic 406 vs. Magnavox Wonder Wizard Bulls Eye
The Conic 406 also has an interesting relationship with the Magnavox Wonder Wizard Bulls Eye.
Both belong to the first-generation television-gaming era.
Conic 406
- Introduced in 1977
- Manufactured in Hong Kong
- Six games
- AY-3-8500 hardware
- Colour sports graphics
- Light-gun support
- Plastic enclosure
Wonder Wizard Bulls Eye
- Introduced in 1977
- Manufactured by Magnavox
- Six games
- AY-3-8500 hardware
- Monochrome graphics
- Light-gun support
- Compact metal enclosure
Shared Technology
Both systems use the General Instrument AY-3-8500.
Different Industrial Designs
Their physical appearance differs considerably.
The Importance of the Semiconductor Industry
This comparison demonstrates how one influential integrated circuit could support multiple competing consumer products.
A Valuable Historical Comparison
The two consoles illustrate differences in regional manufacturing, design, and video presentation during the same period.
🕰️ The First Generation of Home Video Gaming
The Conic Color TV Sports 406 belongs to the earliest generation of home gaming consoles.
The First Commercial Systems
The Magnavox Odyssey introduced home video gaming in 1972.
Atari’s Pong helped popularise the concept.
Dedicated Electronic Games
Most first-generation systems used fixed-purpose electronics.
The Rise of Integrated Circuits
Dedicated Pong chips made gaming hardware less expensive and easier to manufacture.
The International Pong Boom
Numerous companies introduced consoles based on the same or related chips.
The Transition to Software
The Fairchild Channel F and Atari VCS demonstrated the potential of programmable cartridge-based hardware.
A Major Change
Programmable consoles could run fundamentally different games without replacing their core game-generation circuits.
The Conic’s Historical Position
The Conic 406 represents the maturity of dedicated Pong technology shortly before software-based consoles became dominant.
🌍 The Conic 406 in European Gaming History
During the late 1970s, Europe developed a substantial market for imported television games.
An Affordable Entertainment Product
Pong consoles made interactive gaming available without requiring an arcade machine.
An International Supply Chain
Manufacturers in Hong Kong supplied products to European importers and retailers.
Different Regional Brands
Similar hardware could appear under several different commercial names.
An Emerging Consumer Market
Electronic gaming was still a novelty for many households.
The Importance of Colour
Colour graphics helped distinguish some models from simpler monochrome consoles.
The Appeal of Shooting Games
Light-gun functionality offered a different kind of gameplay.
A Relatively Short Era
Dedicated Pong consoles were soon overtaken by more sophisticated programmable systems.
Historical Significance
The Conic 406 documents a brief but important period in the evolution of European video gaming.
🇬🇷 Historical Context for Greece
The late 1970s marked the beginning of domestic video gaming in many European countries, including Greece.
Early Television Games
Consumers encountered electronic sports games through imported consumer electronics.
The Pong Experience
Simple games such as Tennis and Hockey were easy to understand and play.
The Importance of Television
The household television became an interactive entertainment device.
Imported Technology
Many European-market consoles were manufactured in Asia.
A Historically Representative Machine
The Conic 406 demonstrates the type of dedicated television gaming technology available internationally during this period.
Specific Greek retail distribution of the Conic-branded 406 has not been conclusively documented.
An Important Museum Exhibit
Its preservation helps explain the early history of home gaming before the widespread popularity of Atari, Nintendo, Sega, and home computers.
🔧 Maintenance & Common Hardware Problems
The Conic 406 is now an electronic device approaching fifty years of age.
Its original components may require maintenance.
Common Maintenance Areas
- Power connector
- Battery contacts
- Cartridge-free game circuitry
- Paddle connectors
- Paddle potentiometers
- Light-gun sockets
- Game selector
- Difficulty switches
- Start button
- Manual button
- Internal speaker
- RF cable
- Internal capacitors
- Printed circuit board connections
Battery Corrosion
Old batteries can leak and damage the compartment.
Paddle Problems
Dirty or worn potentiometers may cause unstable movement.
Switch Problems
Mechanical switches can develop poor electrical contact.
RF Problems
A working console may appear defective when connected to an incompatible or incorrectly tuned television.
Audio Problems
The internal speaker or sound switch may fail.
Light-Gun Problems
Faults may involve the pistol, its cable, the electrical connectors, or display compatibility.
The Importance of Original Components
The AY-3-8500 and other period components should be preserved wherever practical.
🛠️ Restoration & Testing
Restoring a Conic 406 should begin with careful inspection.
Initial Examination
Check the enclosure, cables, controls, battery compartment, and connectors.
Power Verification
Confirm the correct power specifications before applying electricity.
Testing the Display
Use a compatible analogue television or suitable RF equipment.
Testing the Games
Select all six game modes individually.
Testing the Controllers
Check that both paddle controllers operate smoothly.
Testing the Switches
Verify the functions of:
- Speed
- Angle
- Bat Size
- Serve
- Sound
Testing the Shooting Games
Use a verified compatible photoelectric pistol and an appropriate display.
Preserving Originality
Original circuitry, labels, and enclosure parts should be retained whenever practical.
Documenting Repairs
Any replacement components or modifications should be recorded for future historical reference.
🏛️ Collectability & Historical Preservation
The Conic Color TV Sports 406 is an important collectible because of its distinctive appearance, colour output, shooting-game functions, and connection with Hong Kong’s electronics industry.
Important Collecting Factors
- Original Conic Color TV Sports 406 console
- Correct TVG-406-6 identification
- Original enclosure
- Manufacturer identification labels
- Functional AY-3-8500 game chip
- Working game selector
- Functional difficulty switches
- Original paddle controllers, if present
- Compatible light gun, if present
- Integrated controller storage compartment
- Original battery cover
- Original RF cable
- Correct power adapter, if present
- Original retail packaging, if present
- Instruction manual, if present
The Original Light Gun
A complete example retaining its original pistol is particularly useful for demonstrating all six games.
Original Packaging
The box can provide information concerning the exact model number and original accessories.
Regional Variations
Differences in branding and labels are important for documenting international distribution.
Internal Hardware
Photographs of the main circuit board can help identify production revisions.
Preserving the Original Experience
A working CRT demonstration shows both the console’s colour Pong graphics and its unusual shooting functionality.
A Significant Historical Artefact
The Conic 406 illustrates how inexpensive dedicated electronics helped establish home video gaming internationally.
⭐ Why the Conic Color TV Sports 406 Still Matters
The Conic Color TV Sports 406 remains historically significant for several reasons:
- It belongs to the first generation of home video game consoles
- It was introduced in 1977
- It reflects the growth of Hong Kong’s electronics industry
- It uses the influential General Instrument AY-3-8500
- It offers six dedicated games
- It combines sports and shooting gameplay
- It supports colour television graphics
- It uses detachable paddle controllers
- It supports a photoelectric light gun
- It includes an integrated controller storage compartment
- It provides adjustable gameplay settings
- It represents international hardware rebranding
- It illustrates dedicated game logic before programmable consoles became dominant
A Classic Pong Machine
The Conic 406 preserves the simple gameplay that introduced home video gaming to many households.
More Than Four Games
Its shooting functionality made it more versatile than conventional four-game Pong consoles.
An Important Example of Semiconductor Integration
The AY-3-8500 demonstrates how specialised integrated circuits made affordable gaming practical.
A Hong Kong Manufacturing Story
The Conic brand connects the console with a major part of the history of international consumer electronics production.
A Rare Window into the 1970s
The machine provides a tangible example of the period when console manufacturers were still experimenting with the basic form of home gaming.
📦 Items Included in This Collection Entry
Release year: 1977
Manufacturing location: Hong Kong
Hardware generation: First-generation home console
Main integrated circuit: General Instrument AY-3-8500
Built-in games: Six
Original video capability: Colour sports games and shooting modes
Individual accessories and internal hardware revision: To be documented separately
🏁 Conclusion
The Conic Color TV Sports 406 – TVG-406-6 represents an important stage in the development of home video gaming.
Introduced in 1977, it combined traditional Pong-style sports games with two light-gun shooting modes, colour television graphics, detachable paddle controllers, and adjustable gameplay settings.
Its General Instrument AY-3-8500 integrated circuit demonstrates the technological revolution that made affordable home gaming possible during the late 1970s.
The console’s distinctive enclosure, integrated storage compartment, physical switches, and separate controllers reflect a period when the appearance and functionality of gaming hardware had not yet become standardised.
Manufactured in Hong Kong and marketed internationally under several brand names, the system also illustrates the increasing importance of Asian electronics manufacturers in the global video game industry.
Its six games were permanently implemented through dedicated circuitry rather than software stored on cartridges.
This makes the Conic 406 fundamentally different from the programmable consoles that would soon become dominant.
Although its games are simple by modern standards, the machine introduced important elements of interactive entertainment, including player control, scoring, difficulty adjustment, colour presentation, and alternative input devices.
Today, the Conic Color TV Sports 406 remains a valuable example of first-generation console engineering and the international Pong phenomenon.
A classic 1977 colour Pong console, an early light-gun gaming system, and an important survivor from the pioneering years of interactive home entertainment.
